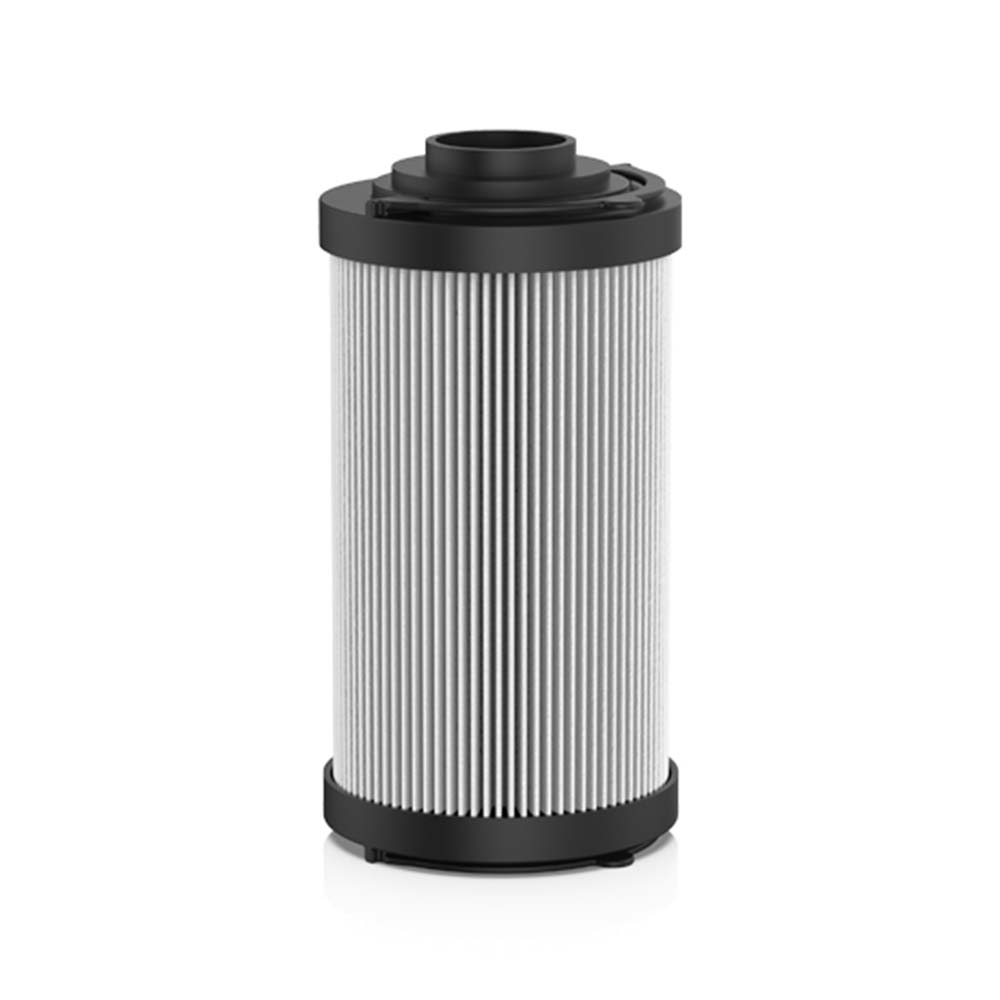

UFI ERA32NCC Replaces the UFI Filter 7606100

UFI ERA32NCC
UFI ERA32NCC

UFI ERA32NCC | Replaces the UFI Filter 7606100

Brand: UFI
Sort by:
Description

Original UFI ERA32NCC replacement filter.

Price Match
€14,95
Price€14,95/each
Shipped Tuesday, 26 August
 Order within 6hrs 50mins
UNITSPER UNIT
2 - 4€14,66
5 - 9€14,36
10+€14,06
8421.99.90
Italy
700
Shipping Terms

Description

Original UFI ERA32NCC replacement filter.

Specification

StyleReturn Filter
Efficiency 110µ @ β2
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 130.0 mm
Bypass Pressure 1.7 BAR
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine UFI Filter 7606100

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 130.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
