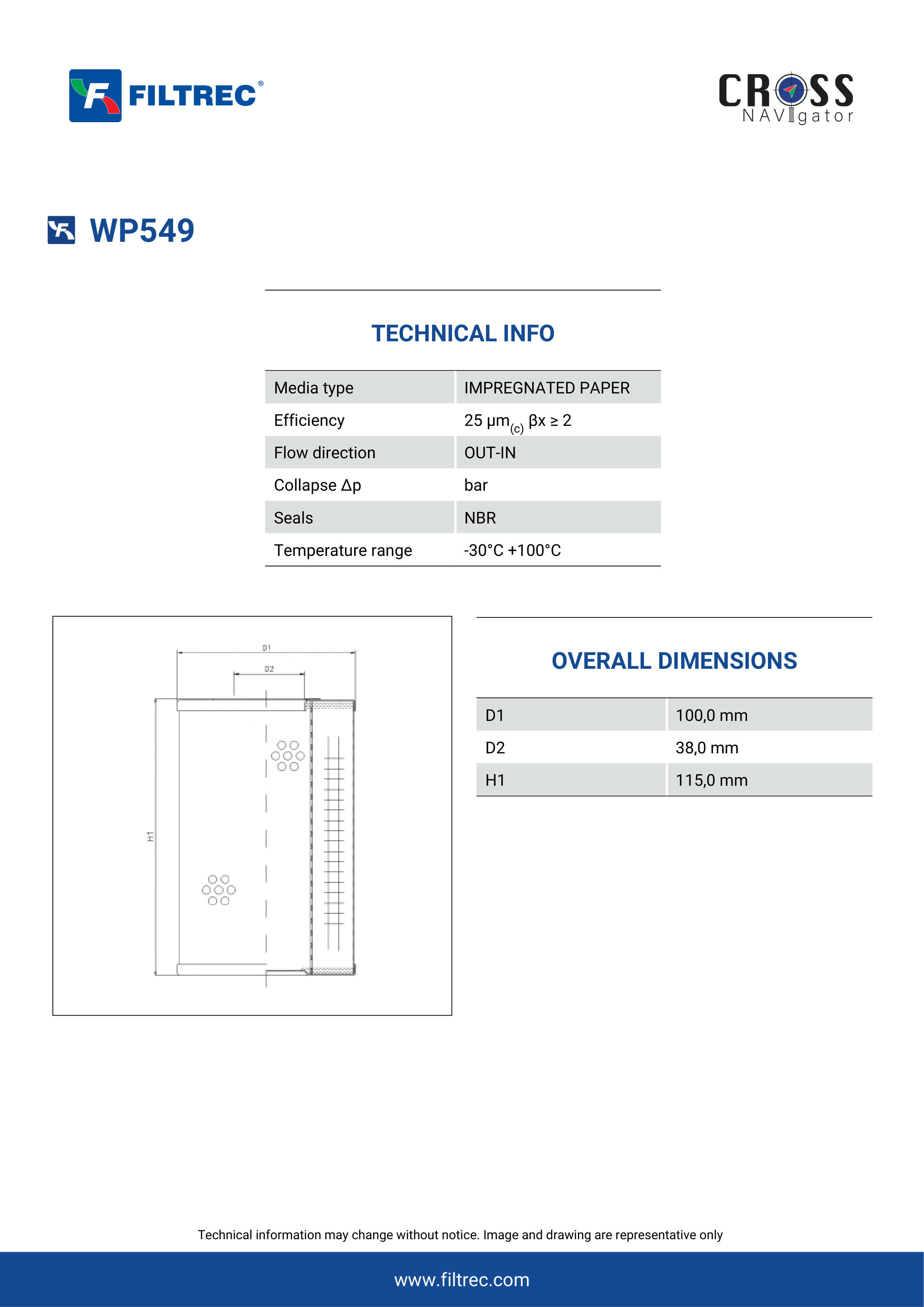

Specification

StyleSpecial Filter
Efficiency 125µ @ β2
Outer Diameter 100.0 mm
Inner Diameter 38.0 mm
Length 115.0 mm
MediaCellulose
Flow DirectionOUT-IN
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
FilterFinder Brand Logo

FilterFinder Product

FilterFinder Approved FF214544B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Special Filter
Outer Diameter 100.0 mm
Inner Diameter 38.0 mm
Length 115.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
