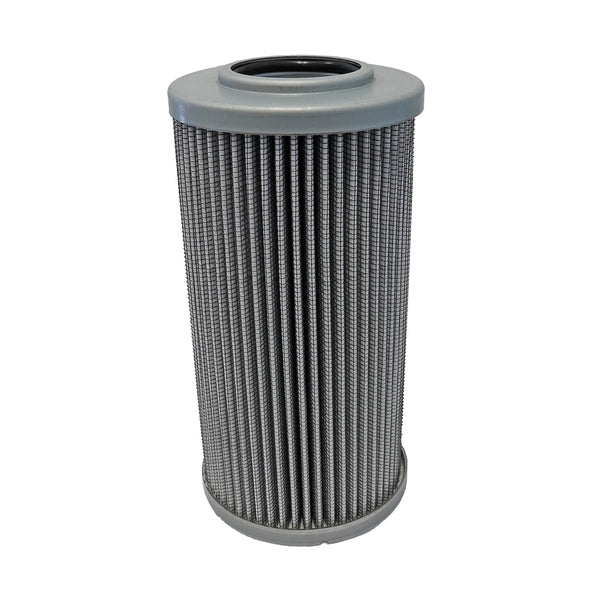

Stauff NL-160-E-06-B/4 Replacement DIN Pressure Filter
Stauff NL-160-E-06-B/4 DIN Pressure Filter
NL-160-E-06-B/4
Stauff
Stauff
Brand:
Stauff
Sort by:
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200
Ships in 38 Days
€215,95
Price€215,95/each
Shipped Friday, 31 October
Order within 11hrs 6mins
Order within 11hrs 6mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €211,64 |
| 5 - 9 | €207,32 |
| 10+ | €203,00 |
0.55 kg
Germany
8421.99.90
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 78.0 mm |
| Inner Diameter | 40.5 mm |
| Length | 157.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 21 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
