MICROFIT MFHLP31828 Replaces the Rexroth R928017949

MICROFIT MFHLP31828

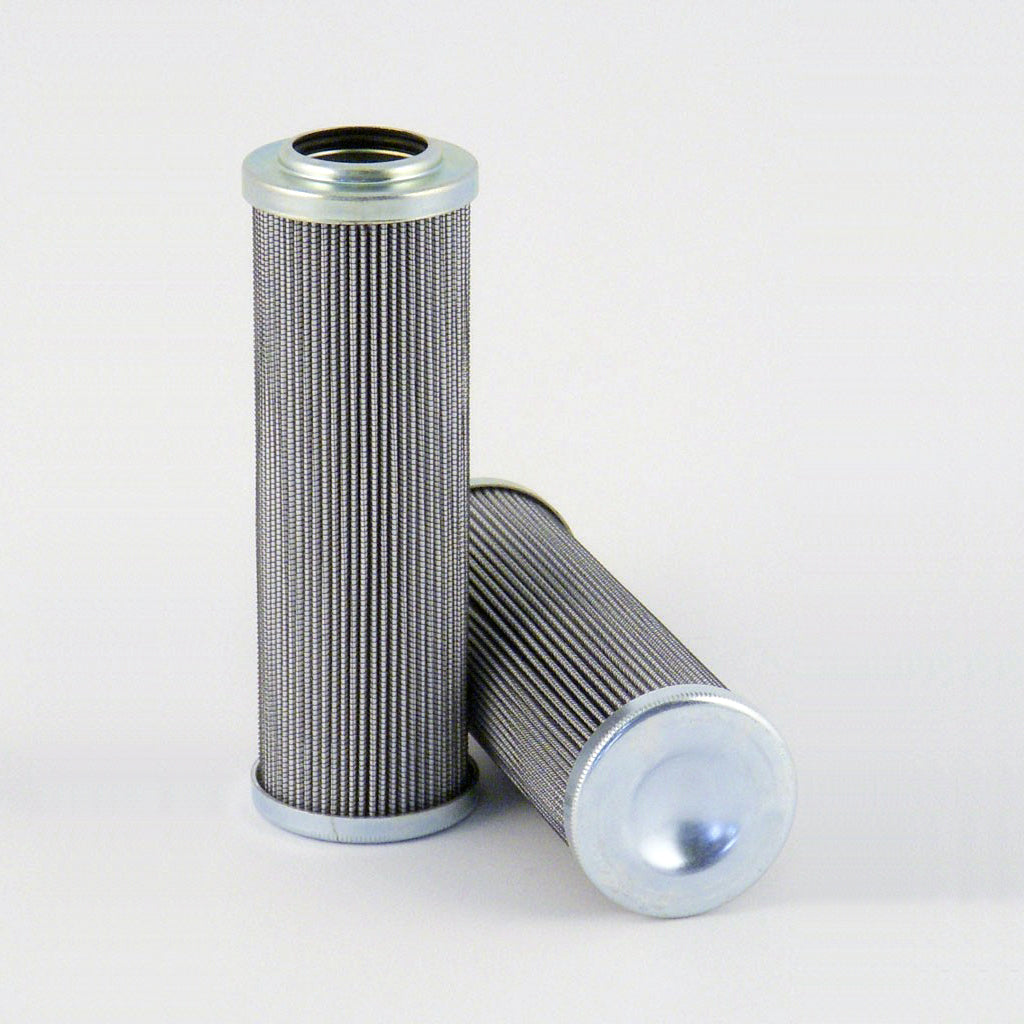

Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP31828 Replaces the Rexroth R928017949

MFHLP31828
MICROFIT
Rexroth R928017949
Description

The MICROFIT® UltraGen III MFHLP31828 is the MICROFIT® approved replacement to the Rexroth R928017949. Engineered and manufactured in Great Britain the MFHLP31828

Brand: MICROFIT
Price Matched
€66,95
5
0.99 kg
8421.99.90
United Kingdom
0.45 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31828 is the MICROFIT® approved replacement to the Rexroth R928017949. Engineered and manufactured in Great Britain the MFHLP31828

Specification

StylePressure Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 179.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth R928017949

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 179.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
